Viltrox DC-L2 7" HDMI/SDI On-Camera Touchscreen Monitor
Key features
- 7" 1280 x 800 IPS Touchscreen Display
- Supports up to DCI/UHD 4 K30 HDMI Input
- 1 x HDMI Input and 1 x HDMI Output
- 1 x SDI Input and 1 x SDI Output
- L-Series Battery Plate, Includes Battery
- Gyroscope for Auto Flip Function
- Headphone Output
- 1 x USB Port for Firmware and 3D LUTs

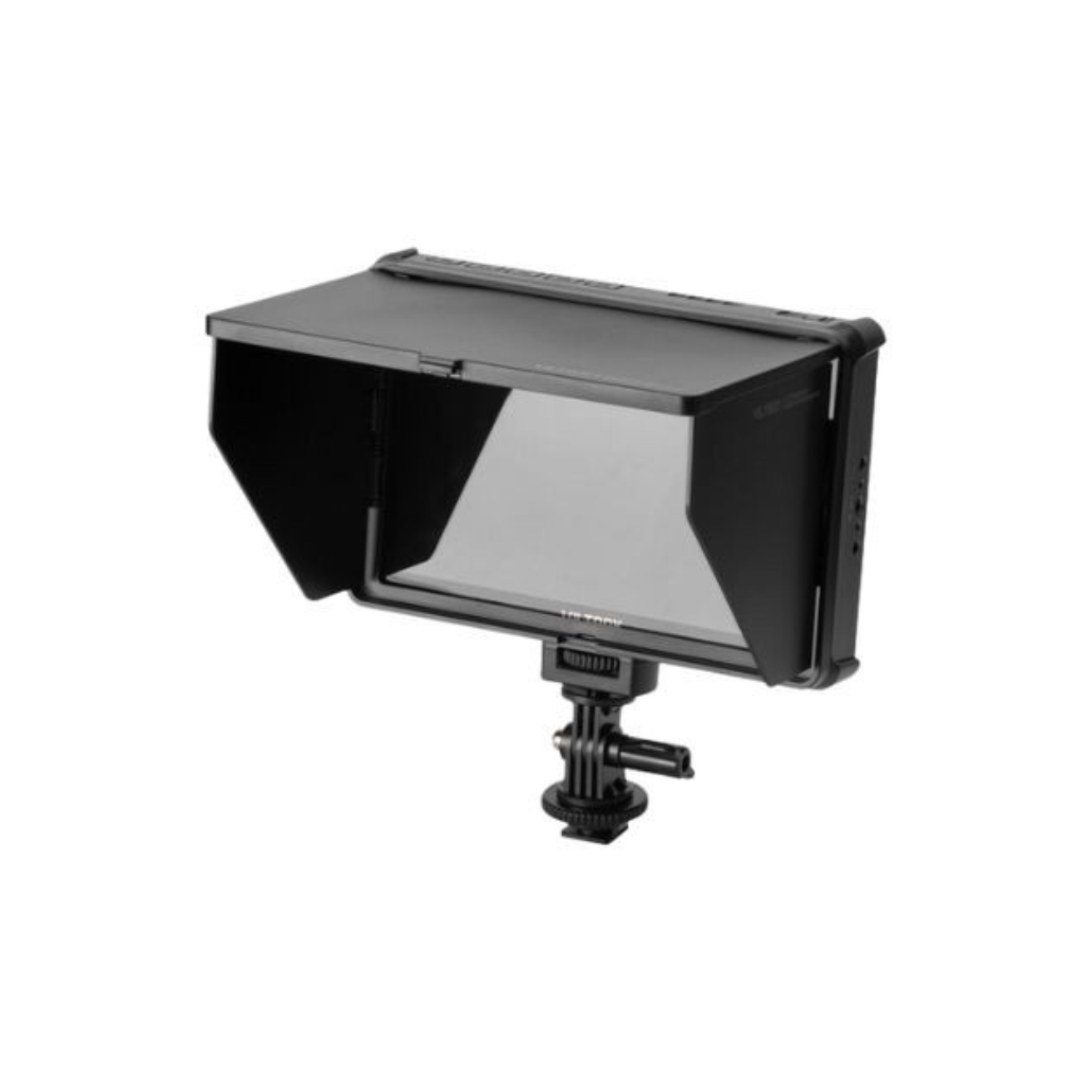

- Sun Hood and Shoe Adapter Included
- HDMI and USB Cables Included
Viltrox DC-L2 7" HDMI/SDI On-Camera Touchscreen Monitor

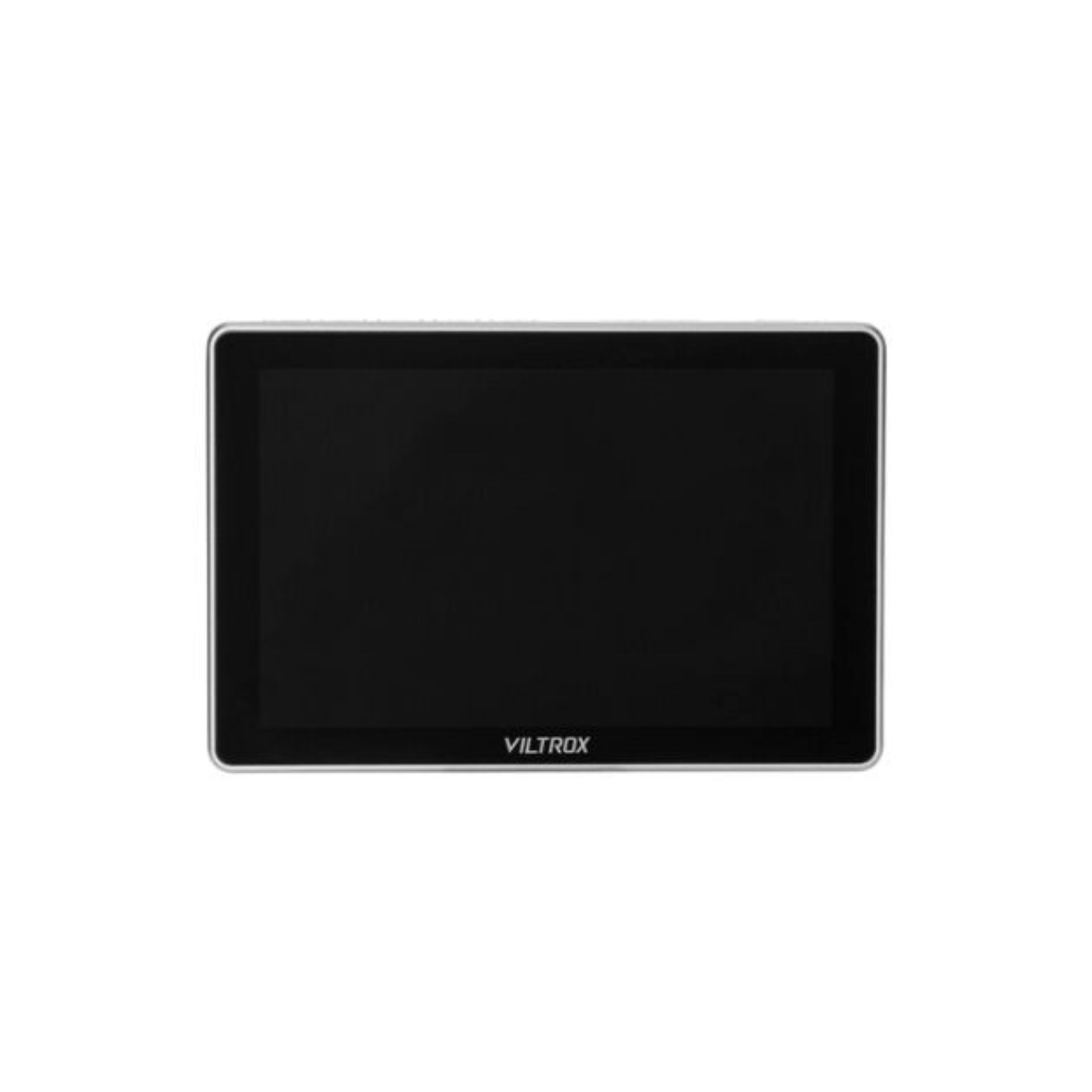

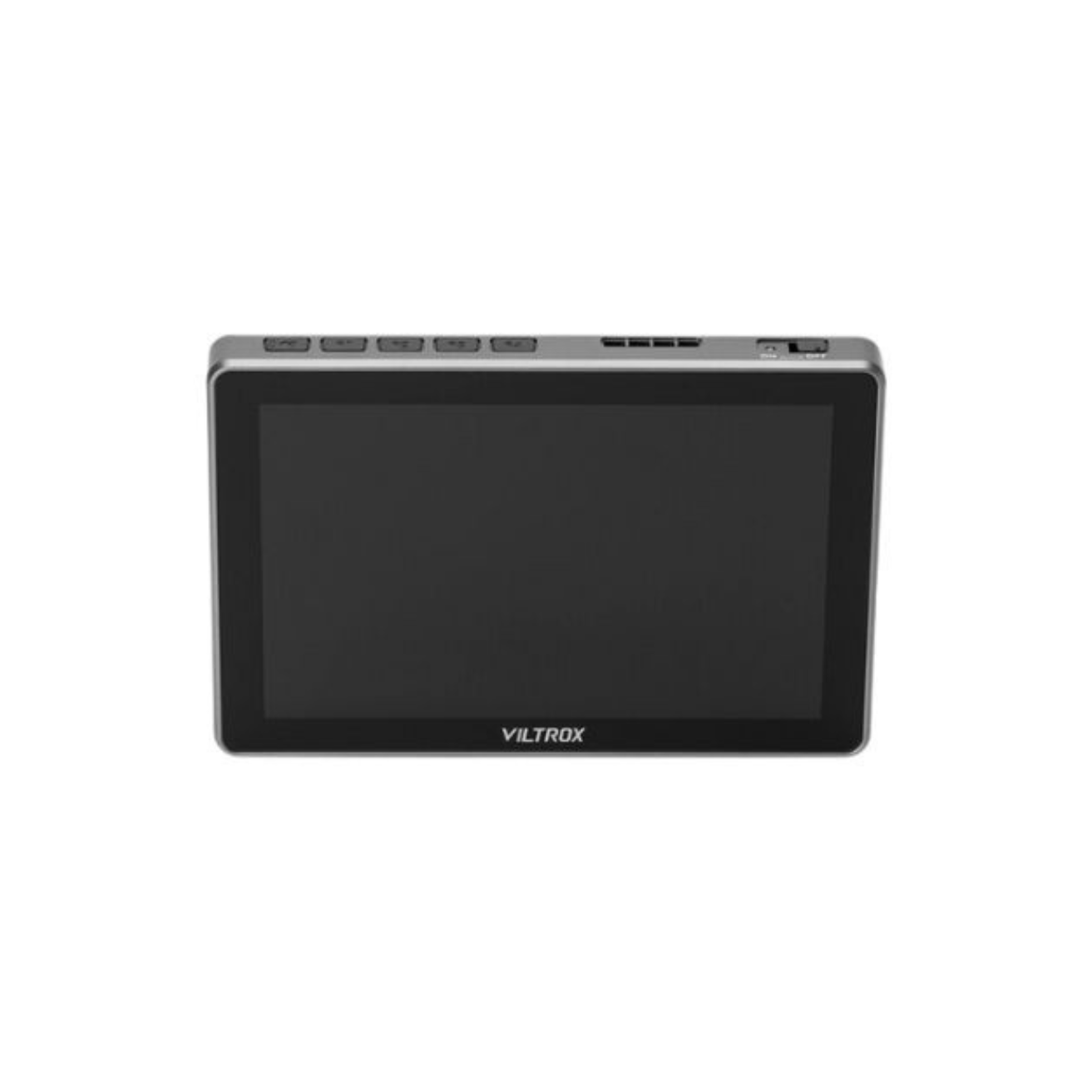

The Viltrox DC-L2 is a versatile and professional 7-inch on-camera touchscreen monitor designed for filmmakers and videographers. It offers a sharp 1280 x 800 IPS display, providing a clear and detailed view of your footage, even in outdoor conditions with its 600-nit brightness.

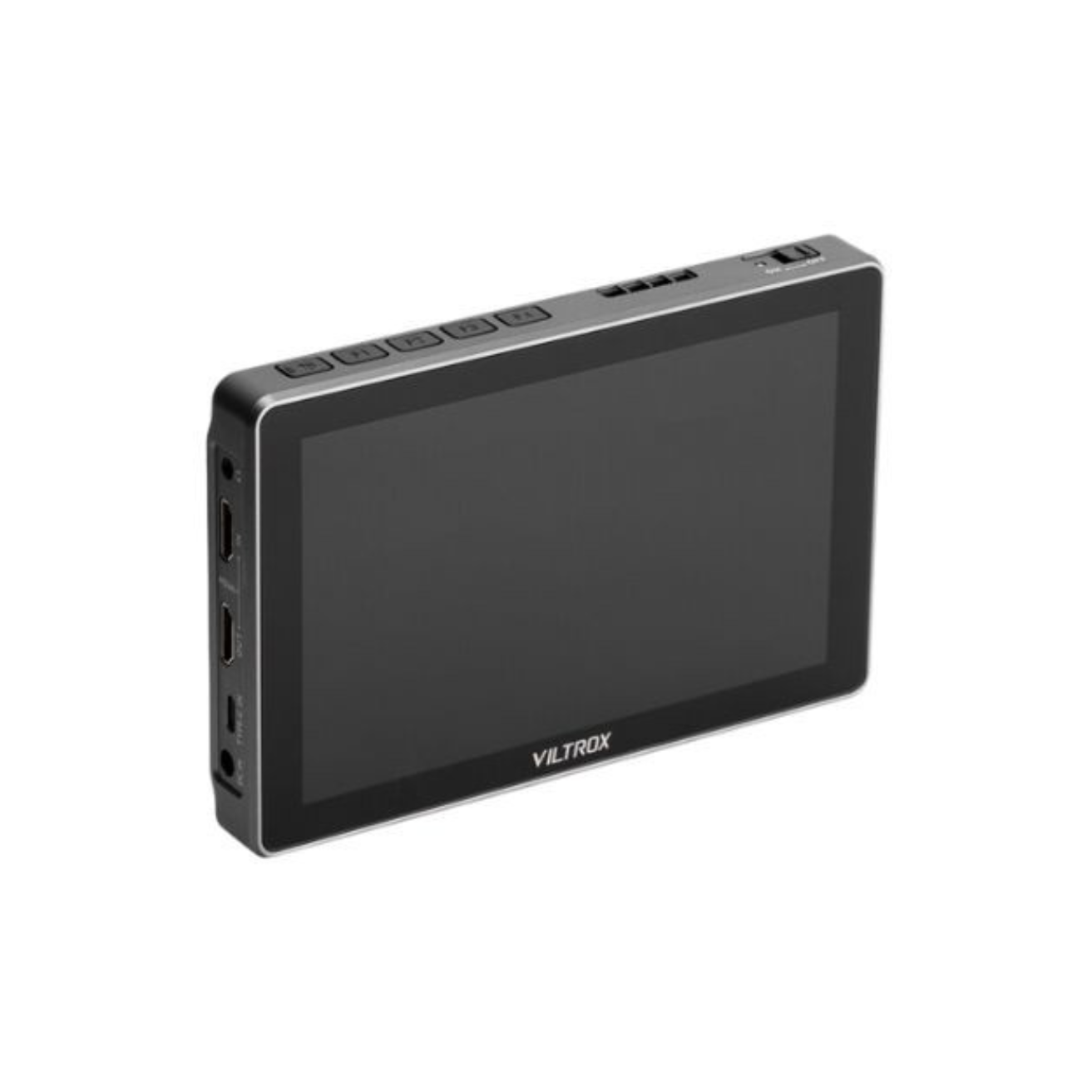

A key strength of the DC-L2 lies in its comprehensive connectivity, featuring both HDMI and 3G-SDI inputs and loop-through outputs. This dual-input capability makes it highly compatible with a wide range of cameras, from DSLRs and mirrorless cameras to professional cinema and broadcast setups. It supports DCI/UHD 4K30 video input, ensuring you can monitor high-resolution footage.

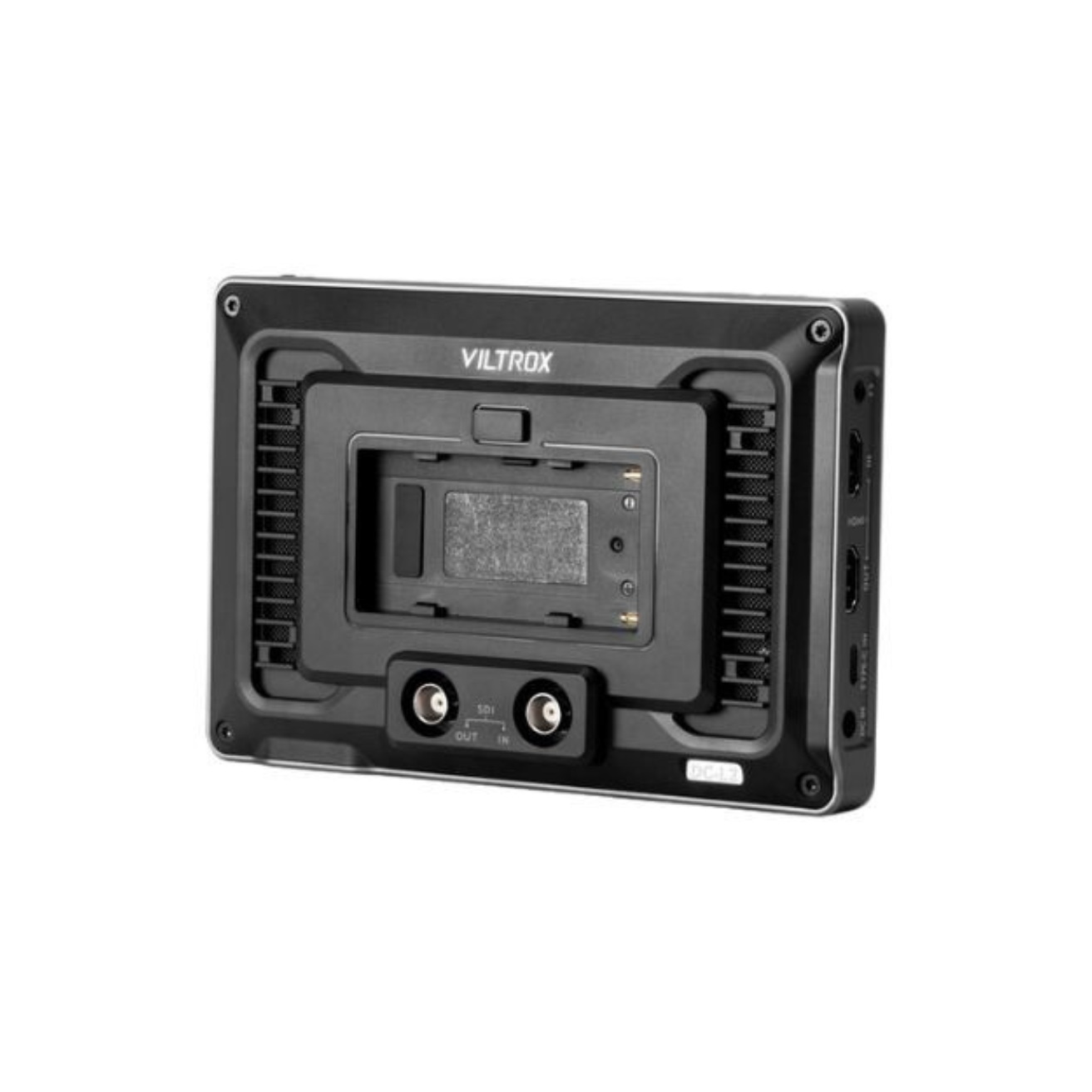

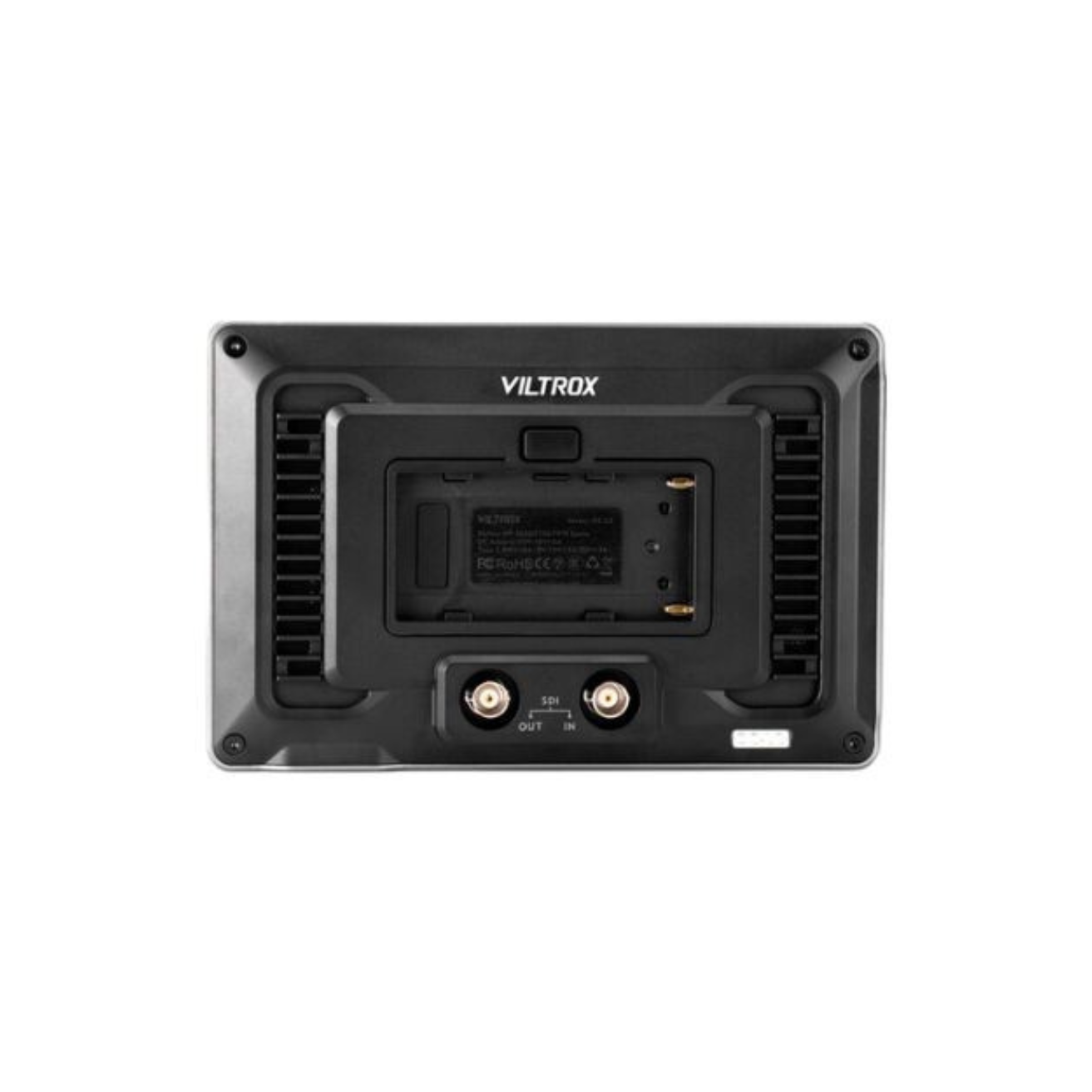

The monitor is packed with professional image analysis tools, including customizable 3D LUTs (up to 20 files via USB), focus peaking, false color, brightness histogram, screen focus, anamorphic de-squeeze, waveform, and vectorscope, all accessible via its intuitive touchscreen interface. Powering the unit is flexible, with options for L-series type batteries (NP-F550/F750/F970), USB-C, or DC barrel power. A built-in gyroscope automatically flips the image orientation, simplifying on-set adjustments. With multiple 1/4"-20 mounting threads and included accessories like a sun hood, L-series battery, and shoe adapter, the Viltrox DC-L2 is a well-rounded and affordable solution for critical on-set monitoring.
